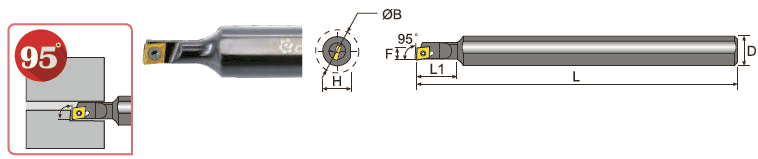

| Размеры | |||||||
| Пластина | Винт | ||||||||
| Model No | Shank | ØB | D | F | H | L | L1 |  |  |
| S0807K-SCLCR/L06 | S | 8 | 8 | 4 | 7 | 125 | 27 |
CC..0602.. Перейти к просмотру | CS25048 |
| S1004K-SCLCR/L03 | 5 | 10 | 2.4 | 10 | 125 | 12 | CC..0301.. | CS18 | |
| S1204H-SCLCR/L03 | 5 | 12 | 2.5 | 11 | 100 | 9 | |||
| S1206K-SCLCR/L04 | 7 | 12 | 3.5 | 11 | 125 | 15 | CC..0401.. | CS22 | |
| S1607K-SCLCR/L06-08 | 8 | 16 | 4 | 15 | 125 | 15 | CC..0602..
Перейти к просмотру | CS25 | |
| S1608K-SCLCR/L06-09 | 9 | 16 | 4.5 | 15 | 125 | 15 | |||
| S1609K-SCLCR/L06-10 | 10 | 16 | 5 | 15 | 125 | 15 | |||
| S161 0K-SCLCR/L06-12 | 12 | 16 | 6 | 15 | 125 | 15 | |||
| Н1004K-SCLCR/L03 | H | 5 | 10 | 2.4 | 9 | 125 | 18 | CC..0301..
| СS18 |
| H1204H-SCLCR/L03 | 5 | 12 | 2.5 | 11 | 100 | 8 | |||
| Н1206K-SCLCR/L04 | 7 | 12 | 3.5 | 11 | 125 | 14 | CC..0401.. | CS22 | |
| Н1607K-SCLCR/L06-08 | 8 | 16 | 4 | 15 | 125 | 15 | CC..0602..
Перейти к просмотру | CS25 | |
| Н1608K-SCLCR/L06-09 | 9 | 16 | 4.5 | 15 | 125 | 15 | |||
| Н1609K-SCLCR/L06-1 О | 10 | 16 | 5 | 15 | 125 | 15 | |||
| H1610K-SCLCR/L06-12 | 12 | 16 | 6 | 15 | 125 | 15 | |||
| C0807K-SCLCR/L06-08 | 8 | 8 | 4 | 7.4 | 125 | 27 | |||
