| Размеры |
Комплектующие | |||||||
|

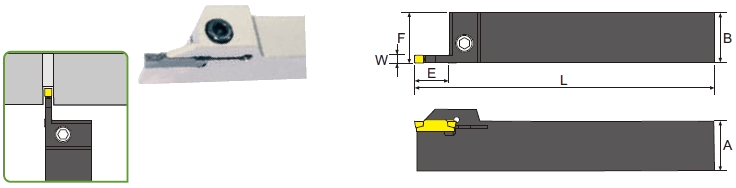

Model No | A | B |
E |
F |
L | W | Вставка | Винт | Рывок |
|
EGEHR/L-16B-2D-14 |
16 |
16 |
14 |
16 |
125 |
2 | MGMN | CS6-50 | LW040 |
|
EGEHR/L-16B-3D-14 |
16 |
16 |
14 |
16 |
125 |
3 | CS6-60 | LW050 | |
|
EGEHR/L-20B-2D-14 |
20 |
20 |
14 |
20 |
125 |
2 | |||
| EGEHR/L-20B-3D-20 | 20 | 20 | 20 | 20 | 125 | 3 | |||
| EGEHR/L-20B-4D-20 | 20 | 20 | 20 | 20 | 125 | 4 | |||
| EGEHR/L-25B-2D-14 | 25 | 25 | 14 | 25 | 150 | 2 | |||
| EGEHR/L-25B-3D-20 | 25 | 25 | 20 | 25 | 150 | 3 | |||
| EGEHR/L-25B-4D-20 | 25 | 25 | 20 | 25 | 150 | 4 | |||
| EGEHR/L-25B-4D-20 | 25 | 25 | 20 | 25 | 150 | 4 | |||
| EGEHR/L-25B-5D-25 | 25 | 25 | 25 | 25 | 150 | 5 | |||
