| Размеры | Комплектующие | ||||||
| Ключ | Пластина | Винт | |||||||

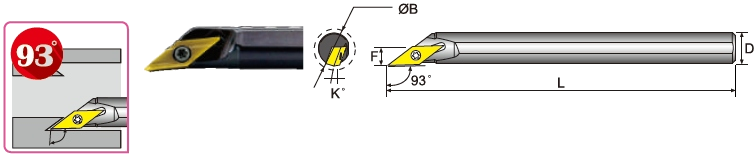

| Model No | Shank | ØB
| D | F | K | L |  |  |  |
| S10K-SVJCR/L 11 | S | 12 | 10 | 6 | 13 | 125 | VC..1103.. Перейти к просмотру | CS25 | T-8 |
| S12M-SVJCR/L 11 | 14 | 12 | 7 | 15 | 150 | ||||
| S16Q-SVJCR/L 11 | 18 | 16 | 9 | 14 | 180 | ||||
| S20R-SVJCR/L 11 | 25 | 20 | 10.5 | 10 | 180 | ||||
| S16Q-SVJCR/L 16 | 18 | 16 | 9 | 14 | 180 | VC..1604.. Перейти к просмотру | CS35 | T-15 | |
| S20R-SVJCR/L 16 | 25 | 20 | 10.5 | 10 | 200 | ||||
| S25R-SVJCR/L 16 | 32 | 25 | 13.5 | 7 | 200 | ||||
| S32S-SVJCR/L 16 | 40 | 32 | 17 | 7 | 250 | ||||
| S40T-SVJCR/L 16 | 47 | 40 | 23.5 | 8 | 300 | ||||
| H10K-SVJCR/L 11 | H | 12 | 10 | 6 | 13 | 125 | VC..1103.. Перейти к просмотру | CS25 | T-8 |
| H12M-SVJCR/L 11 | 14 | 12 | 7 | 15 | 150 | ||||
| H16Q-SVJCR/L 11 | 18 | 16 | 9 | 14 | 180 | ||||
| H20R-SVJCR/L 11 | 25 | 20 | 10.5 | 10 | 200 | ||||
| H16Q-SVJCR/L 16 | 18 | 16 | 9 | 14 | 180 | VC..1604.. Перейти к просмотру | CS25 | T-8 | |
| H20R-SVJCR/L 16 | 25 | 20 | 10.5 | 10 | 200 | ||||
| H25R-SVJCR/L 16 | 32 | 25 | 13.5 | 7 | 200 | ||||
