| Размеры | Комплектующие | ||||||
| Пластина | |||||||||
| Винт | Ключ | ||||||||

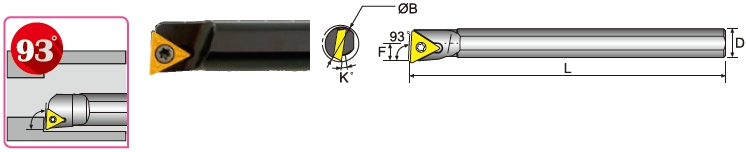

| Model No | Shank | ØB | D | F | K | L |  |  |  |
| S08K-STUBR/L06-08 | S | 8 | 8 | 4 | 12 | 125 | TB..0601..
Перейти к просмотру | CS20 | T-6 |
| S08K-STUBR/L06-09 | 9 | 8 | 4.5 | 15 | 125 | ||||
| S08K-STUPR/L08-10 | 10 | 8 | 5.5 | 10 | 125 |
TP..0802.. | CS22 | T-7 | |
| S08K-STUPR/L09-10 | 10 | 8 | 5.5 | 10 | 125 | TP..0902..
Перейти к просмотру | CS25048 | T-8 | |
| S10K-SТUPR/L09-12 | 12 | 10 | 6 | 8 | 125 | CS25 | |||
| S12M-STUPR/L09-14 | 14 | 12 | 7 | 5 | 150 | ||||
| S10K-STUPR/L 11-12 | 12 | 10 | 6 | 8 | 125 | TP..1103..
Перейти к просмотру | CS30 | T-10 | |
| S12M-STUPR/L 11-14 | 14 | 12 | 7 | 7 | 150 | ||||
| S14M-STUPR/L 11-16 | 16 | 14 | 8.5 | 6 | 150 | ||||
| S16Q-STUPR/L 11-18 | 18 | 16 | 9 | 4 | 180 | ||||
| S18Q-STUPR/L 11-20 | 20 | 18 | 10 | 4 | 180 | ||||
| S20R-STUPR/L 11-22 | 22 | 20 | 11 | 2 | 200 | ||||
| S25R-STUPR/L 11-28 | 28 | 25 | 14 | 5 | 200 | ||||
| S20R-STUPR/L 1604-22 | 22 | 20 | 11 | 3 | 200 | TP..1604..
| CS35 | T-15 | |
| S25R-STUPR/L 1604 | 32 | 25 | 16 | 2 | 200 | ||||
| S20R-STUPR/L 1603-22 | 22 | 20 | 11 | 3 | 200 | TP..1603..
Перейти к просмотру | |||
| S25R-STUPR/L 1603 | 32 | 25 | 16 | 2 | 200 | ||||
| A08K-STUPR/L09-10 | A | 10 | 8 | 5.5 | 10 | 125 | TP..0902..
Перейти к просмотру | CS25048 | T-8 |
| A10K-STUPR/L09-12 | 12 | 10 | 6 | 8 | 125 | CS25 | |||
| A12M-SТUPR/L09-14 | 14 | 12 | 7 | 5 | 150 | ||||
| A12M-STUPR/L 11-14 | 14 | 12 | 7 | 7 | 150 | TP..1103..
Перейти к просмотру | CS30 | T-10 | |
| A16Q-STUPR/L 11-18 | 18 | 16 | 9 | 4 | 180 | ||||
| A20R-STUPR/L 11-22 | 22 | 20 | 11 | 2 | 200 | ||||
| H08K-STUBR/L06-09 | H | 9.5 | 8 | 4.5 | 15 | 125 | TB..0601..
Перейти к просмотру | CS20 | T-6 |
| H08K-STUPR/L08-10 | 10 | 8 | 5.5 | 10 | 125 | TP..0802.. | CS22 | T-7 | |
| H08K-STUPR/L09-10 | 10 | 8 | 5.5 | 10 | 125 | TP..0902..
Перейти к просмотру | CS25048 | T-8 | |
| H10K-STUPR/L09-12 | 12 | 10 | 6 | 8 | 125 | CS25 | |||
| H12M-STUPR/L09-14 | 14 | 12 | 7 | 5 | 150 | ||||
| H10K-STUPR/L 11-12 | 12 | 10 | 6 | 8 | 125 | TP..1103..
Перейти к просмотру | CS30 | T-10 | |
| H12M-STUPR/L 11-14 | 14 | 12 | 7 | 7 | 150 | ||||
| H16Q-STUPR/L 11-18 | 18 | 16 | 9 | 4 | 180 | ||||
| H20R-STUPR/L 11-22 | 22 | 20 | 11 | 2 | 200 | ||||
| H25R-STUPR/L 11-28 | 28 | 25 | 14 | 2 | 200 | ||||
| H20R-STUPR/L 1604-22 | 22 | 20 | 11 | 3 | 200 | TP..1604.. | CS35 | T-15 | |
| H25R-STUPR/L 1604 | 32 | 25 | 14 | 2 | 200 | ||||
| H08K-STUPR/L08-10-O | O | 10 | 8 | 5.5 | 10 | 125 | TP..0802.. | CS22 | T-7 |
| H08K-STUPR/L09-10-O | 10 | 8 | 5.5 | 10 | 125 | TP..0902..
Перейти к просмотру | CS25048 | T-8 | |
| H10K-STUPR/L09-12-O | 12 | 10 | 6 | 8 | 125 | CS25 | |||
| Н12M-STUPR/L09-14-O | 14 | 12 | 7 | 5 | 150 | ||||
| H10K-STUPR/L 11-12-0 | 12 | 10 | 6 | 8 | 125 | TP..1103..
Перейти к просмотру | CS30 | T-10 | |
| H12M-STUPR/L 11-14-0 | 14 | 12 | 7 | 7 | 150 | ||||
| H16Q-STUPR/L 11-18-0 | 18 | 16 | 9 | 4 | 180 | ||||
| H20R-STUPR/L 11-22-0 | 22 | 20 | 11 | 2 | 200 | ||||
| C08K-STUPR/L08-10 | C | 10 | 8 | 5.5 | 10 | 125 | TP..0802.. | CS22 | T-7 |
| C08H-STUPR/L08-10 | 10 | 8 | 5.5 | 10 | 100 | ||||
| C08K-SТUPR/L09-10 | 10 | 8 | 5.5 | 10 | 125 | TP..0902..
Перейти к просмотру | CS25048 | T-8 | |
| C10M-STUPR/L09-12 | 12 | 10 | 6 | 15 | 150 | CS25 | |||
| С12Q-STUPR/L09-14 | 14 | 12 | 7 | 15 | 180 | ||||
| C10M-STUPR/L 11-12 | 12 | 10 | 6 | 15 | 150 | TP..1103..
Перейти к просмотру | CS30 | T-10 | |
| C10H-STUPR/L 11-12 | 12 | 10 | 6 | 15 | 100 | ||||
| C12Q-STUPR/L 11-14 | 14 | 12 | 7 | 10 | 180 | ||||
| C16R-STUPR/L 11-18 | 18 | 16 | 9 | 6 | 200 | ||||
| C20S-STUPR/L 11-22 | 22 | 20 | 11 | 3 | 250 | ||||
| C25T-STUPR11 | 32 | 25 | 17 | 4 | 300 | ||||
