| Размеры | Комплектующие | ||||||
| Пластина | |||||||||
| Винт | Ключ | ||||||||

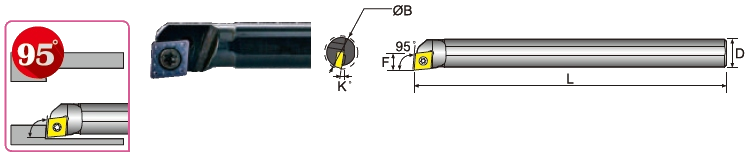

| Model No | Shank | ØB | D | F | K | L |  |  |  |
| S10K-SCLPR/L08-12 | S | 12 | 10 | 6 | 10 | 125 | CP..0802..
| CS30 | T-10 |
| S12M-SCLPR/L08-14 | 14 | 12 | 7 | 8 | 150 | ||||
| S12M-SCLPR/L09-14 | 14 | 12 | 7 | 8 | 150 | CP..0903..
Перейти к просмотру | CS35 | T-15 | |
| S12M-SCLPR/L09-16 | 16 | 12 | 8.5 | 6 | 180 | ||||
| S14M-SCLPR/L09-16 | 16 | 14 | 8.5 | 9 | 150 | ||||
| S16Q-SCLPR/L09-18 | 18 | 16 | 9 | 9 | 180 | ||||
| S18Q-SCLPR/L09-20 | 20 | 18 | 10 | 9 | 180 | ||||
| S20R-SCLPR/L09-22 | 22 | 20 | 11 | 7 | 200 | ||||
| S25R-SCLPR/L09 | 32 | 25 | 17 | 7 | 200 | ||||
| Н10K-SCLPR/L08-12 | H | 12 | 10 | 6 | 7 | 125 | CP..0802.. | CS30 | T-10 |
| Н12M-SCLPR/L08-14 | 14 | 12 | 7 | 6 | 150 | ||||
| Н12M-SCLPR/L09-16 | 16 | 12 | 8.5 | 6 | 150 | CP..0903..
Перейти к просмотру | CS35 | T-15 | |
| Н16Q-SCLPR/L09-18 | 18 | 16 | 9 | 4 | 180 | ||||
| H20R-SCLPR/L09-22 | 22 | 20 | 11 | 4 | 200 | ||||
| H25R-SCLPR/L09-28 | 32 | 25 | 14 | 4 | 200 | ||||
| С10M-SCLPR/L08-12 | C | 12 | 10 | 6 | 7 | 150 | CP..0802.. | CS30 | T-10 |
| C12Q-SCLPR/L08-14 | 14 | 12 | 7 | 6 | 180 | ||||
| C12Q-SCLPR/L09-16 | 16 | 12 | 8 | 6 | 180 | CP..0903..
Перейти к просмотру | СS35 | T-15 | |
| С16R-SCLPR/L09-18 | 18 | 16 | 9 | 4 | 200 | ||||
| C20S-SCLPR/L09-22 | 22 | 20 | 11 | 4 | 250 | ||||
| C25T-SCLPR/L09 | 32 | 25 | 17 | 4 | 300 | ||||
